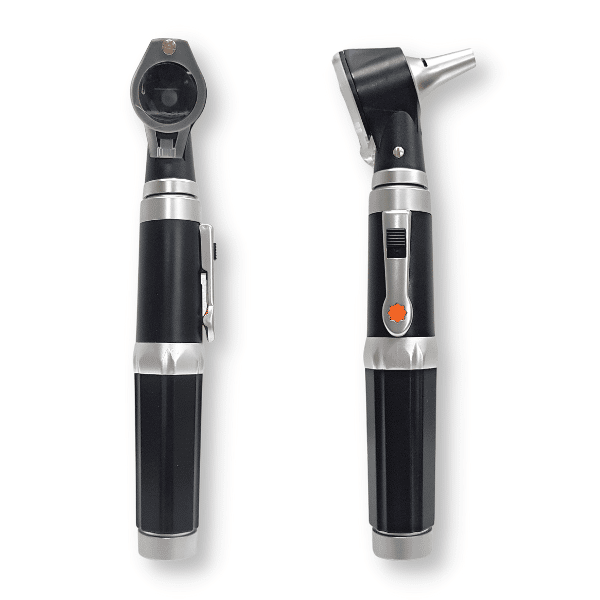

OTOSCOPE/OPTHALMOSCOPE SET

OTOSCOPE/OPTHALMOSCOPE SET

General Features

1. Handle and Light Source

• The handle is use 2xAA Alkaline batteries.
• Ergonomic standard handle as fig 1
• The clip with integrated on/off switch
• The handle supports LED bulb.

2. Fiber Optic Otoscope

    As a traditional diagnostic otoscope, it is adopts the optical fiber total reflection technology, and make the light path and observation of  the light  tend to be coaxial through the optimization design, which increase the visual field view. It is used to view the tympanic membrane and external ear canal to diagnose outer and middle ear pathologies.

    * Fiber optic illumination

    * 3 X magnification for the viewing window

    * B109LF5 LED bulb used

    * 2.4\3\4\5mm tips to choose

    * 24 lumen

3. Direct Opthalmoscope

    Direct Ophthalmoscope is a classic  medical device for ophthalmology. This device adopts a professional lens system, which make doctors conveniently get a clear visual field for examining the interior structures of eyes. It is used to view the dioptric media, retina and macula lutea, etc.

   * 15x magnification

   * 5 different  apertures

   * 18 kinds of adjustable corrective lenses, Range of lenses: -20D to +20D.

   * B206LF5 LED bulb used

   * 14 lumen
